What Is Thermal Imaging?
Thermal imaging is a diagnostic method that creates a visual map of surface heat patterns using infrared radiation. Electricians compare temperatures across similar components to identify unusual heating linked to loose connections, excessive load, damaged conductors, or failing equipment. The scan supports troubleshooting but does not replace electrical testing.
Quick Facts About Thermal imaging
Category
Diagnostic inspection method
Used for
Finding abnormal electrical heating
Common confusion
It does not measure voltage or current
Also called
Infrared inspection, Infrared thermography
Often discussed with
Electrical troubleshooting and diagnostics
Key Takeaways About Thermal imaging
- It shows heat patterns that ordinary visual inspections cannot reveal.
- Temperature differences help narrow the source of an electrical problem.
- A hot spot does not identify the fault by itself.
How Thermal imaging Works

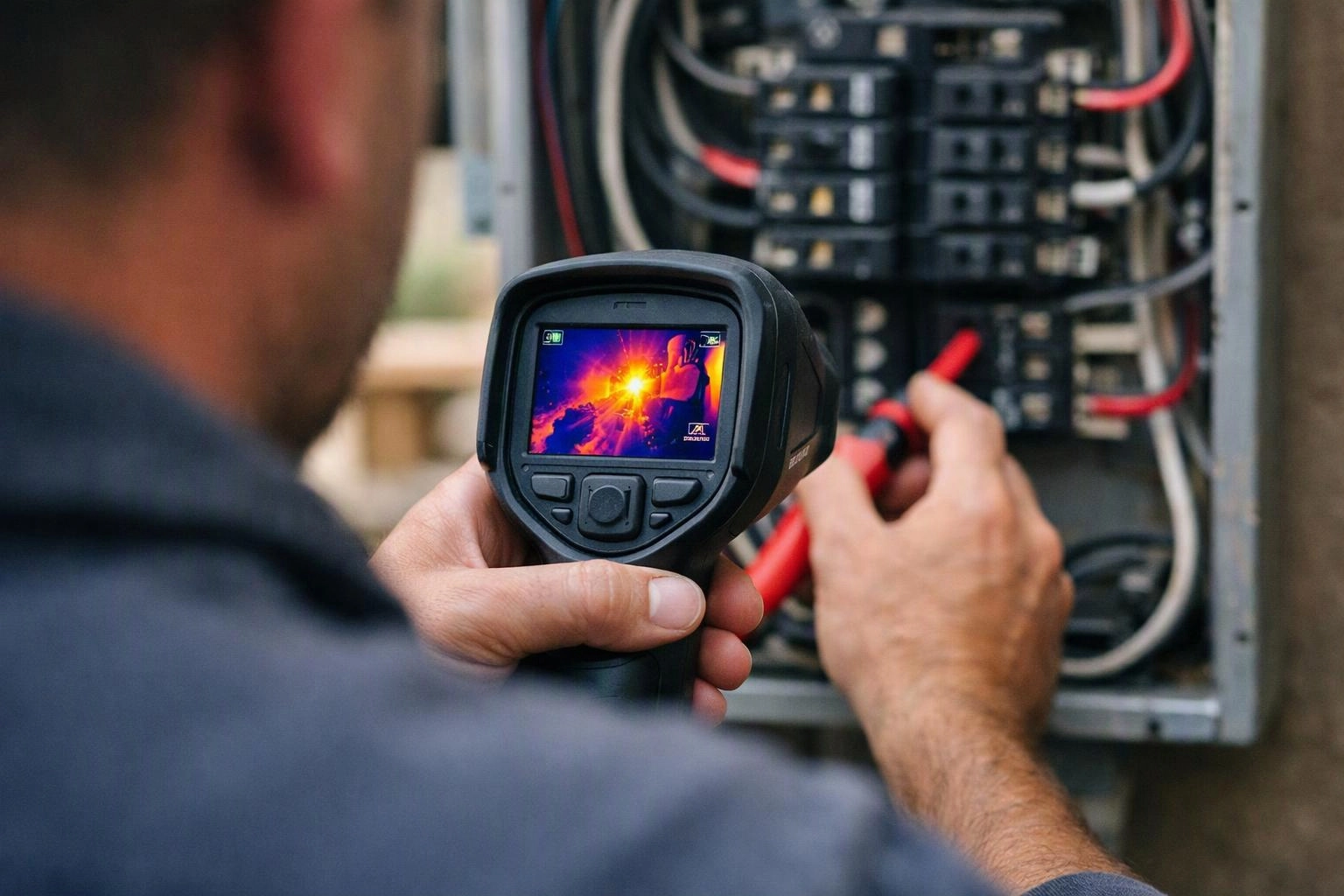

Thermal imaging uses a camera that detects infrared energy from surfaces and converts the readings into a heat-pattern image. Warmer areas appear different from cooler areas, which helps an electrician compare similar breakers, terminals, conductors, or equipment parts. The image shows surface conditions, not the electrical cause by itself.
Related glossary terms: Breaker trip, Circuit overload, Voltage drop.
A technician interprets the pattern alongside circuit behavior, load conditions, and electrical test results. A localized hot spot may point toward a loose termination, while broader heating may suggest overload or poor heat dissipation. A thermal camera can guide further testing without requiring the electrician to rely on visible damage. Electrical resistance and current measurements may still be needed to confirm the problem.
From the Center Electric Service team

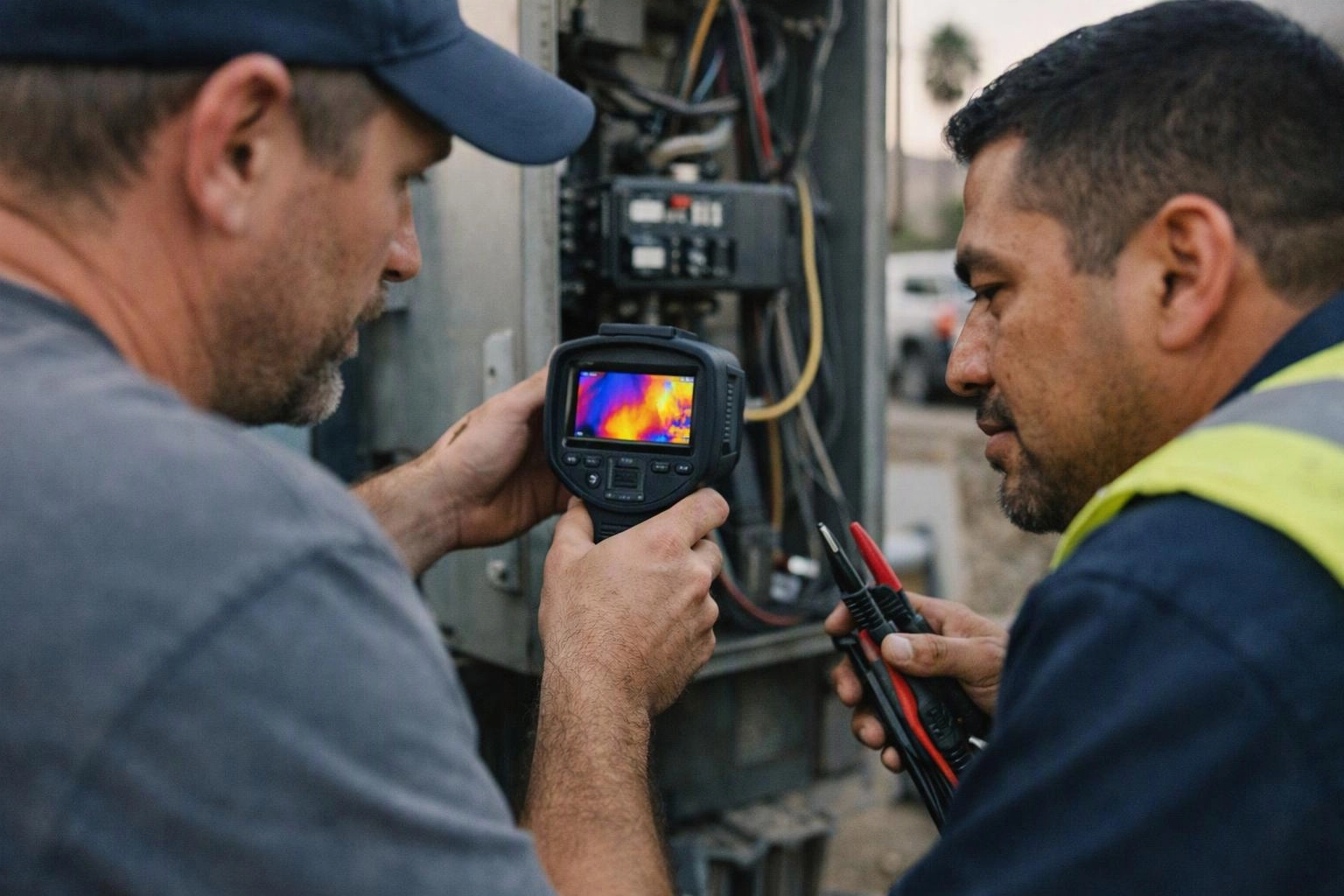

When we use thermal imaging, we compare related electrical components under operating conditions and look for meaningful temperature differences. We then pair the image with visual inspection and electrical testing. Our team treats a hot area as a diagnostic clue, not a final diagnosis.
Thermal imaging in Practice: A Real-World Example
A homeowner reports that one breaker area feels warmer than nearby breakers. During electrical troubleshooting and diagnostics, thermal imaging may reveal a localized hot spot at a terminal, guiding closer inspection of the connection and circuit load.
