What Is a Busbar?

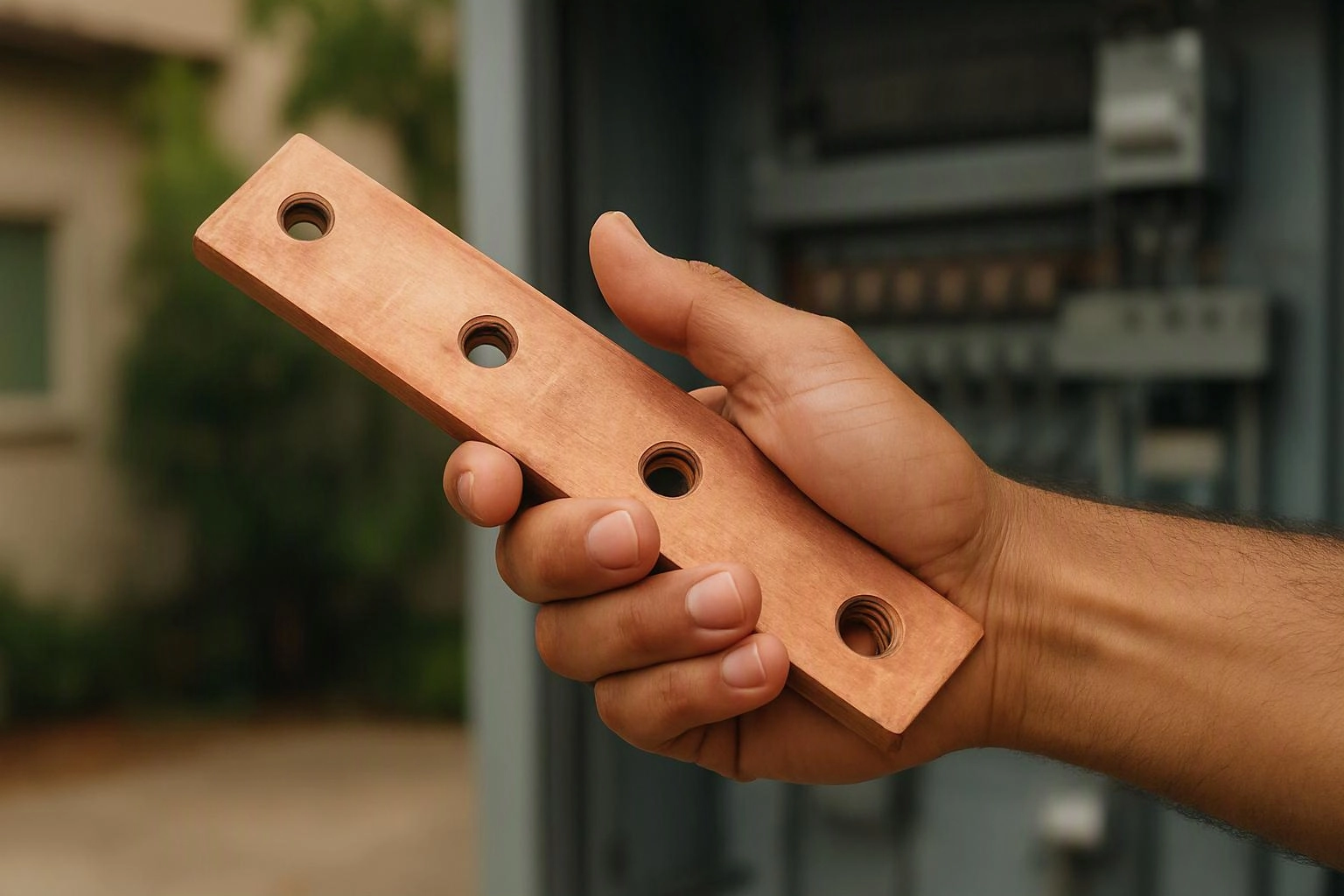

Busbar is a conductive metal strip or bar inside electrical equipment that distributes power to multiple circuits. A busbar provides a common electrical connection for circuit breakers, disconnects, or other components. Its size, material, insulation, and connection points must suit the panel design and the electrical load served.
Quick Facts About Busbar
Category
Panel distribution component
Used for
Distributing power to circuits
Common confusion
Mistaken for a circuit breaker
Also called
Bus bar
Often discussed with
Electrical panel upgrade
Key Takeaways About Busbar
- A busbar is a shared conductive connection inside electrical equipment.
- Its connections must match the panel design and electrical load.
- A busbar is not the same as a circuit breaker.
How Busbar Works
Busbar carries electrical current along a shared metal path inside a panel or other distribution equipment. Circuit breakers connect to that path through approved mounting points. Power entering the panel can then reach individual branch circuits through their breakers.
Related glossary terms: Circuit breaker, Electrical grounding, Neutral wire.
A busbar may serve hot conductors, neutral conductors, or grounding connections, depending on its position and the equipment design. Insulating barriers and proper spacing help keep separate electrical paths apart. During an electrical panel upgrade, the busbar must work with the panel enclosure, breakers, wiring layout, and available capacity. Damage, overheating, corrosion, or incompatible connections can affect reliable distribution and require careful inspection.
From the Center Electric Service team

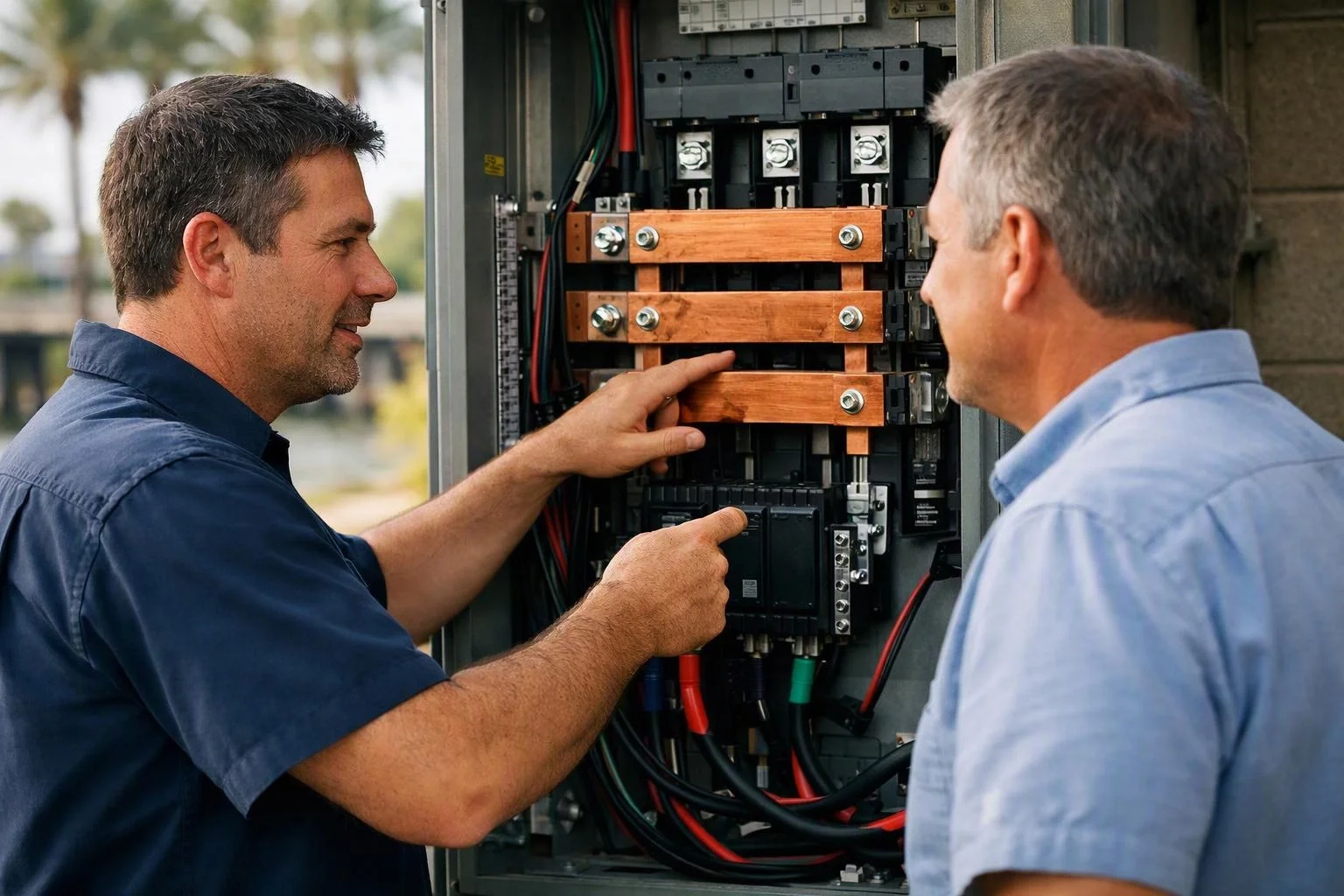

When we inspect a panel, we check the busbar for heat damage, loose connections, corrosion, and signs of poor breaker fit. During an upgrade, our team confirms that the busbar, breakers, neutral connections, and grounding arrangement belong to the same approved panel design. We document conditions before recommending work.
Busbar in Practice: A Real-World Example
During an electrical panel upgrade, a technician examines the busbar where circuit breakers connect. If the connection points show heat damage or do not match the replacement equipment, the panel design and connected circuits need careful review before installation.
