Can a J1772 Connector connect to a vehicle with a NACS inlet?

A J1772 Connector can connect to a vehicle with a NACS inlet only through an adapter that is suitable for the vehicle and charging equipment.

Does a J1772 Connector control charging speed?

The connector carries power and communication signals, while the vehicle, charger, circuit, and available electrical capacity together influence charging speed.

Glossary

What Is a J1772 Connector?

J1772 Connector is a standardized plug and vehicle inlet design used for alternating-current electric vehicle charging. The connector carries charging power and communication signals between compatible charging equipment and the vehicle. Its shape supports broad compatibility among many electric cars and plug-in hybrids, while separate connector designs serve other charging systems.

Quick Facts About J1772 Connector

Key Takeaways About J1772 Connector

It uses a standardized shape for many electric vehicles.
The connector carries power and communication signals.
J1772 is not the same as a NACS Connector.

How J1772 Connector Works

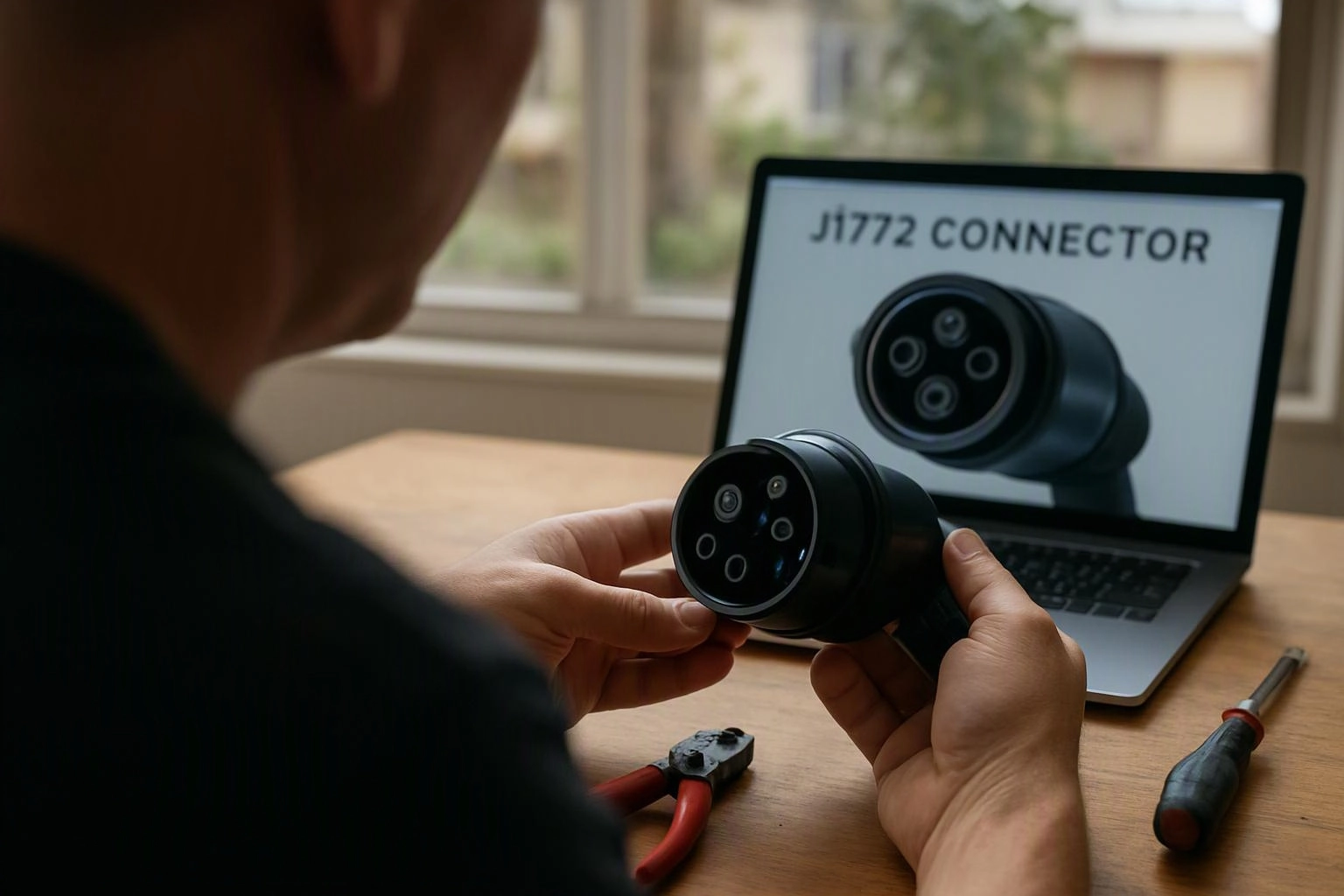

A person holds a black connector while a laptop shows a larger connector image on a desk

The J1772 Connector transfers alternating-current power from charging equipment to a compatible vehicle. Its control pilot signal lets the vehicle and charger exchange charging information before power flows. A proximity signal helps detect whether the connector is properly engaged with the vehicle inlet.

Related glossary terms: NACS Connector, Dedicated Circuit, Electrical Load.

The connector does not determine every part of an installation. The circuit, charging equipment, vehicle inlet, and electrical load all affect how charging operates. A J1772 charging cable may connect a wall-mounted charger or a portable charging unit to the vehicle. Some vehicles with a different inlet use an approved adapter for J1772 equipment, depending on the vehicle and charger.

NACS Connector equipment uses a different physical design and charging interface. During an installation, the connector type helps determine charger compatibility, cable reach, and the equipment location. The vehicle manual and charger documentation identify the correct connection method.

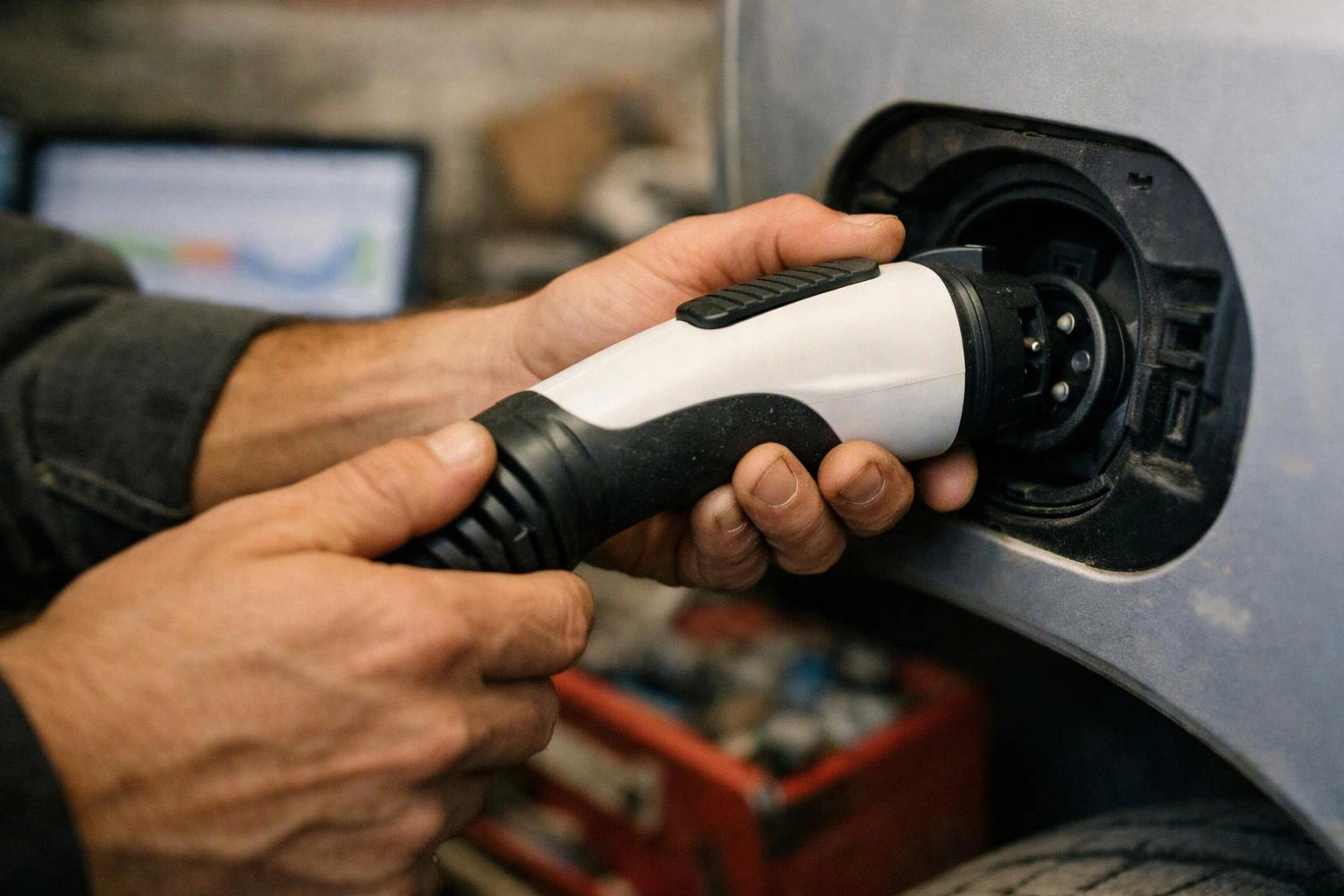

Hands plug an electric vehicle charging connector into a car port indoors

From the Center Electric Service team

When we plan Electric Vehicle Charger Installation, we verify that the charging equipment and vehicle inlet use compatible connectors. We also check the cable path, mounting position, circuit capacity, and equipment connections. Our team treats the J1772 Connector as one part of the complete charging system.

J1772 Connector in Practice: A Real-World Example

A Riverside homeowner selects a wall-mounted charger with a J1772 cable for an electric vehicle that has a matching inlet. The installation plan accounts for the charger location, cable reach, and the electrical circuit serving the equipment.
