What Is a Photoelectric Sensor?

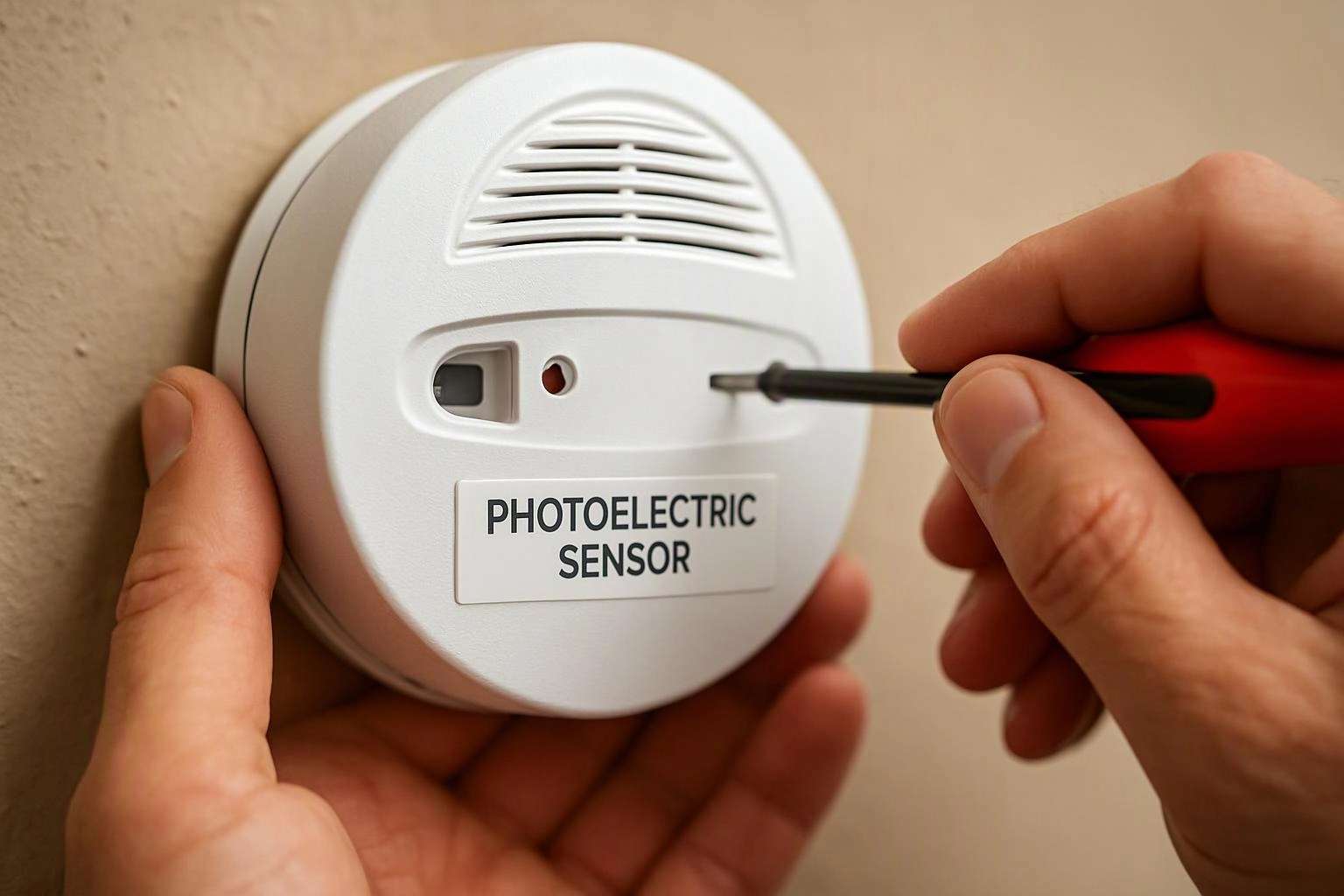

A Photoelectric Sensor is a smoke-detection component that uses a light source and a sensing element to identify changes caused by airborne smoke. In a residential alarm, smoke entering the sensing chamber changes the light pattern and triggers the alarm circuit. This design is commonly associated with detecting slowly developing, smoky fires.
Quick Facts About Photoelectric Sensor
Category
Smoke detection component
Used for
Detecting airborne smoke
Common confusion
Different from a photocell
Also called
Photoelectric Smoke Sensor, Optical Smoke Sensor
Often discussed with
Smoke Detector Installation
Key Takeaways About Photoelectric Sensor
- Light scattering distinguishes this sensor from heat-based detection.
- Dust and insects can affect sensing chamber performance.
- A photoelectric sensor is not the same as a photocell.
How Photoelectric Sensor Works
A Photoelectric Sensor uses a light source and a sensing element inside a chamber. Clean air allows the chamber to maintain its normal light pattern. When smoke enters, smoke particles scatter light toward the sensing element. The resulting change signals the alarm circuit.
Related glossary terms: Electrochemical Sensor, Photocell, Test/Reset Button.
The sensor responds to the condition inside the chamber, not to room brightness. A smoke alarm combines this sensing component with an alarm, power source, and test function. Dust, insects, paint residue, or poor chamber condition can interfere with detection. Technicians check the alarm's placement, wiring, power, and response during installation or service. A photoelectric sensor also differs from a photocell, which commonly responds to changes in surrounding light for lighting control.
From the Center Electric Service team
When we handle smoke detector installation, we check the sensor type, alarm location, power connection, and interconnection with other alarms. We also test the installed unit and look for conditions that could obstruct the sensing chamber or cause nuisance alarms.
Photoelectric Sensor in Practice: A Real-World Example
A homeowner replaces an aging smoke alarm during a smoke detector installation. We install a compatible photoelectric unit, connect its wiring correctly, and test whether the alarm responds through its test function.
